The air conditioning of the office building is carried out with Multizone Systems, INVERTER Technology, Variable Refrigerant Flow, (VRF – Digital Variable Multi System), of the SAMSUNG company.

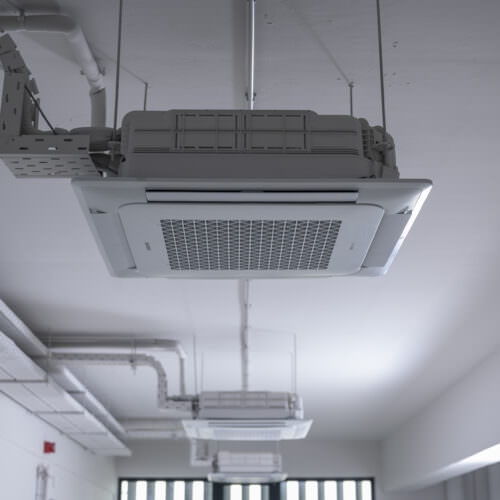

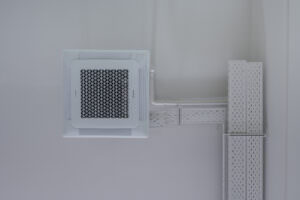

The indoor units are Samsung’s new Wind-Free cassettes, designed to deliver high levels of comfort evenly and efficiently, without cold drafts, thanks to the optimized louver design and innovative Wind-Free cooling technology.

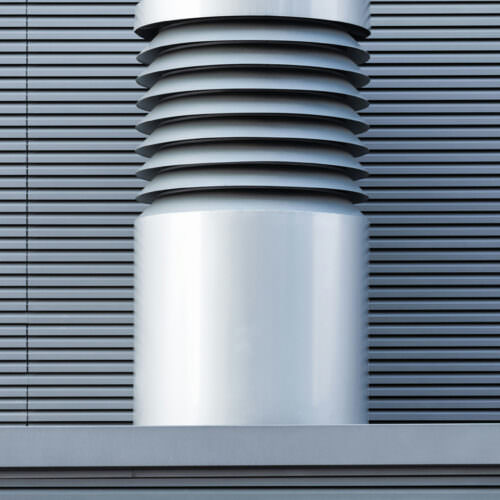

At the same time, the ventilation of the office spaces is achieved through heat exchange and recovery units, connected to visible and elegant networks of circular air ducts and grilles.

The temperature and humidity in the workplace have a great impact on the productivity of workers, so with the help of Samsung Climate Solutions and through the perfect combination of constant temperature control, flexibility and silent operation, it is possible to work in cool and quiet conditions that enhance focus and performance.

Finally, an easy-to-use central management and higher-level control system has been installed, which includes a series of smart features that help to control each area in the office premises and at the same time make the operation and maintenance of the systems more efficient and economical.

The ventilation in all the main spaces is achieved with means of exchange and recovery. Heat units connected with visible and nice circular ventilation networks and mouthpieces with the following machinery :

1. 3 PCS AIR VOLUME 800m3/H-AN080JSKLKN/EU
2. 27 PCS AIR VOLUME 500m3/H-AN050JSKLKN/EU

TYPE VERINSO VS 150AK-A

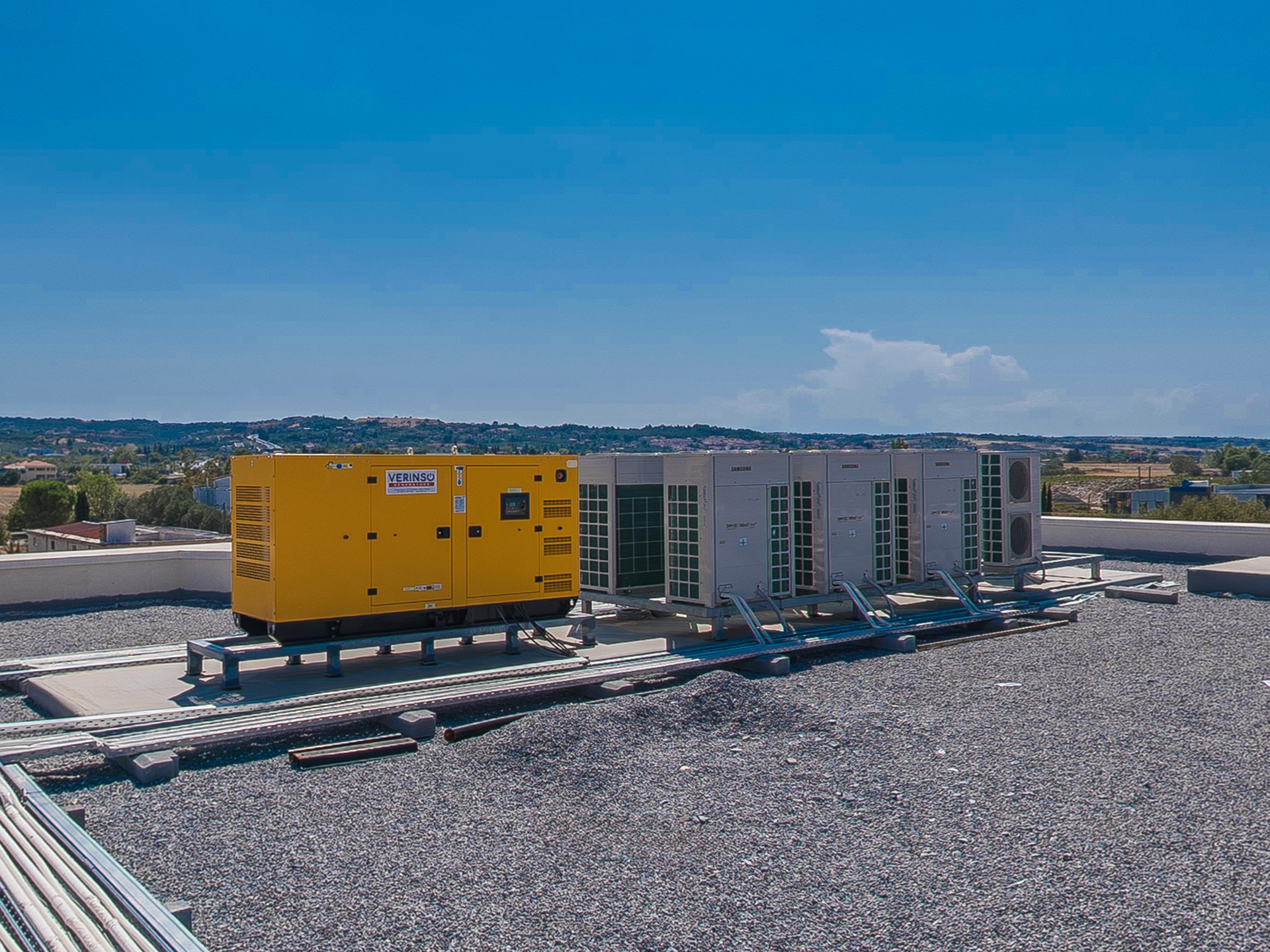

STANDBY POWER (ESP)  KVA 150  / KW 120

PRIME POWER (PRP)     KVA 138 / KW 110,4

These advanced power systems are a cornerstone of the building’s commitment to providing state-of-the-art facilities while safeguarding against any power disruption.

Power Generator Coverage
In the event of a power outage, the Verinso power generator system ensures uninterrupted functionality for the building’s essential areas:

1. Internal Common Areas: Provides power to staircases and corridors across all shared spaces.
2. Elevators: Keeps elevators operational to maintain access between floors.
3. Basement: Ensures the basement remains fully powered.
4. UPS, Water Pump Station & Firefighting Equipment: Maintains crucial backup systems, water supply, and firefighting equipment.
5. Exterior Lighting: Keeps outdoor lighting functional for safety and visibility.
6. Security Systems: Powers access points, alarm systems, cameras, and fire safety equipment.
7. Entrance Guard Station: Ensures the guard station remains operational for ongoing security.
8. Main Entrance Gates and Barriers: Maintains the operation of entrance doors and vehicle barriers.

This comprehensive coverage ensures that all critical areas of the Nonagon Building continue to function smoothly, even during a power outage.

Electrical Substation ( Dedicated, in premise )

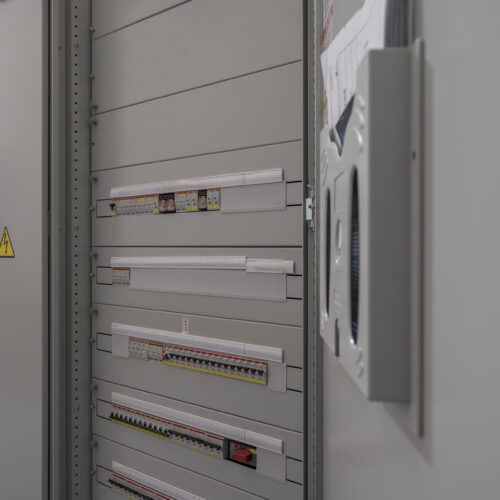

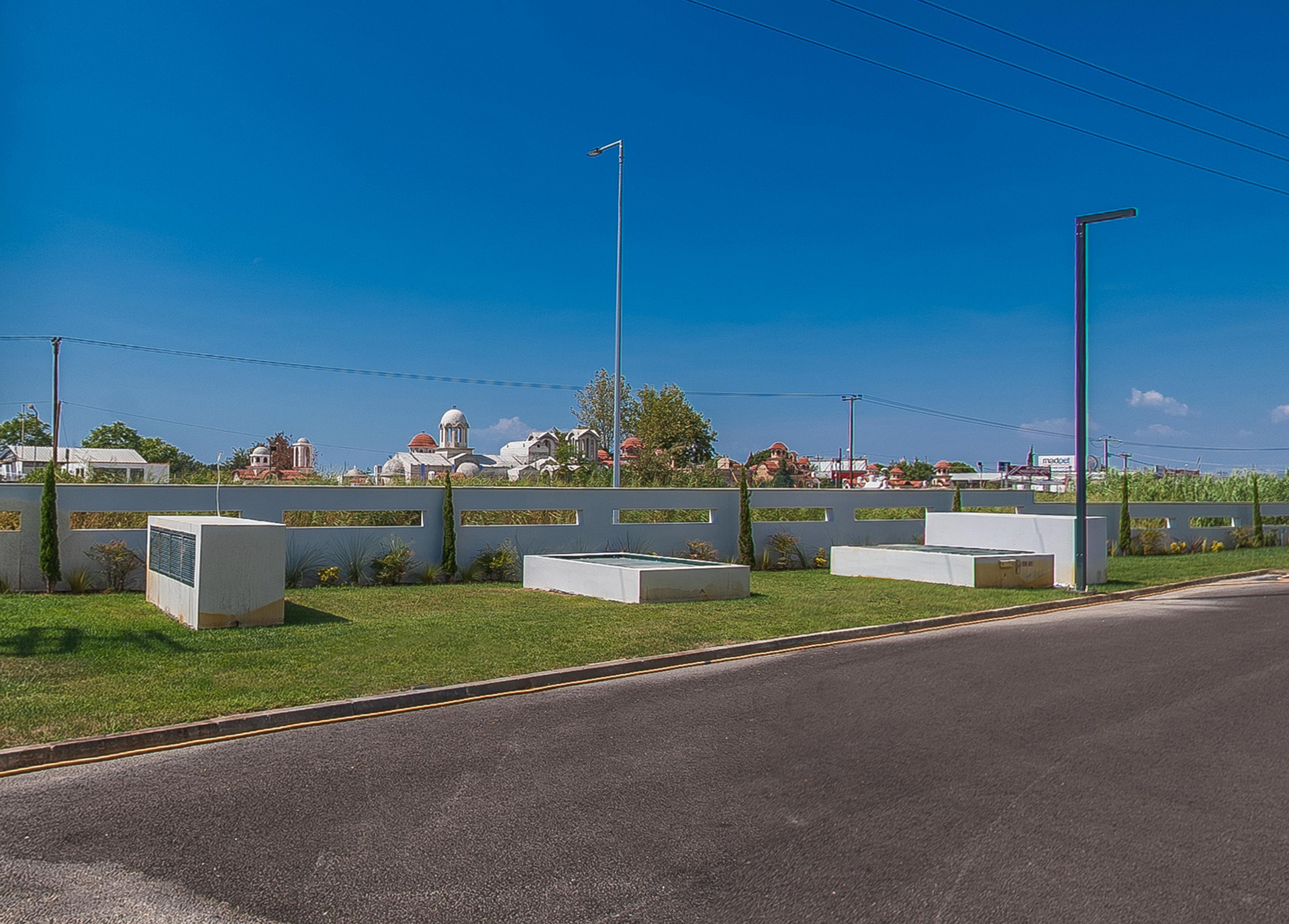

The Nonagon Building is powered by an underground electrical substation with a 2×1000 KVA capacity, supplied by the national power company (DEI). This substation efficiently distributes power through the following connections:

1. 1 Meter with N7 supply: Dedicated to common areas.
2. 6 Meters with N6 supply: Providing electricity to various independent spaces.
3. 3 Meters with N5 supply: Catering to additional building requirements.

Key Benefits for Nonagon Building:
Uninterrupted Power Supply: The generators are integrated into the Nonagon Building to provide continuous backup power, ensuring critical systems remain online during outages or energy fluctuations. This is essential for the building’s high-performance infrastructure, from office spaces to operational hubs.

Protected from the Elements

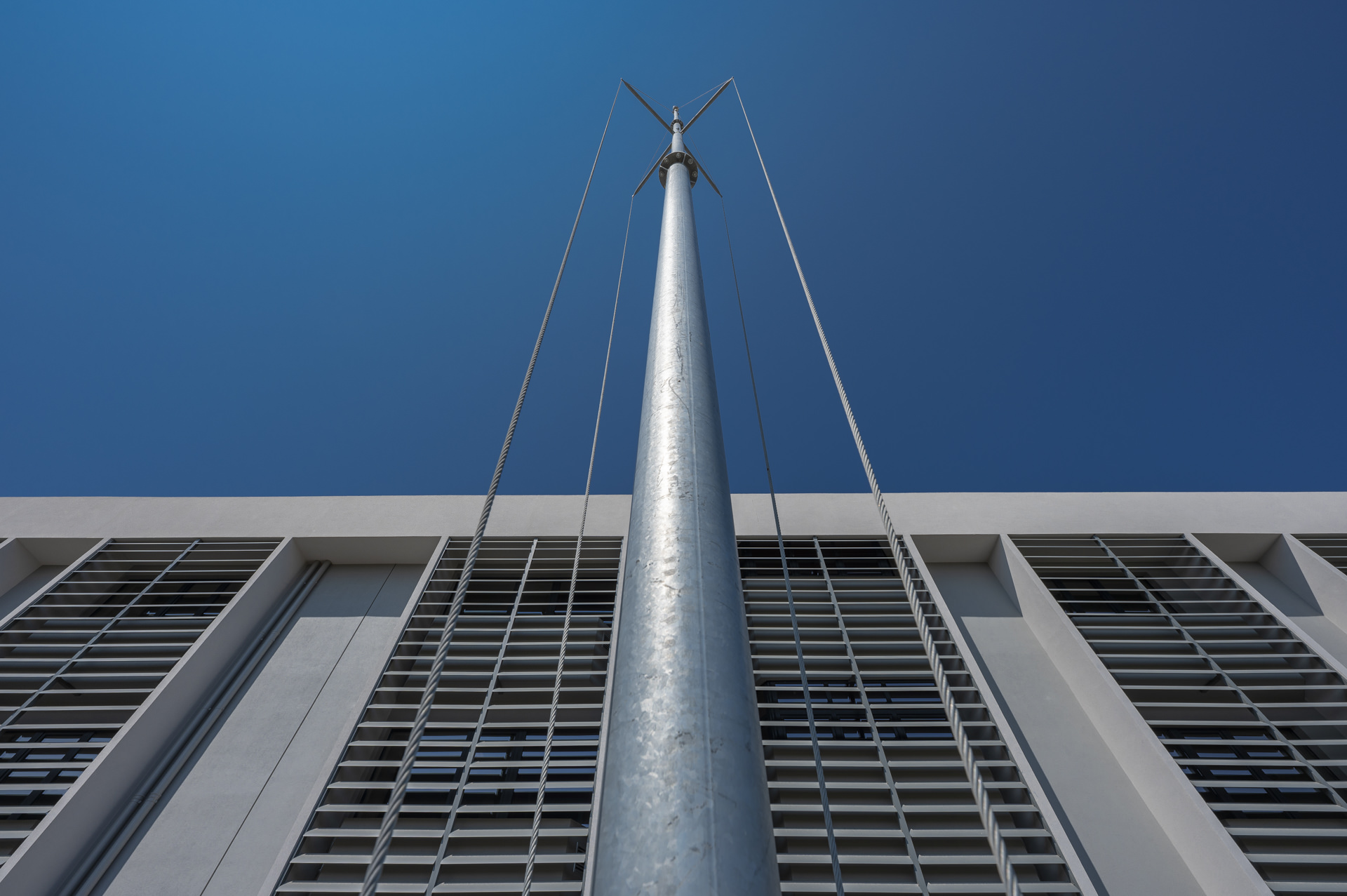

The Nonagon Building is equipped with an exterior lighting arrester pole and a robust surge protection system. This essential infrastructure safeguards the building from lightning strikes and electrical surges, ensuring uninterrupted operations and the safety of all occupants. Designed to divert and neutralize electrical discharges, these systems provide reliable protection for both the building’s sensitive equipment and its structural integrity.

A. STRUCTURED CABLING

The building has a certified structured cabling system consisting of a Class ^6A central copper

infrastructure and a fiber optic system in each room with a data transfer rate of up to 10Gbit.

Each space is equipped with copper terminal outlets and fiber optic interconnection so that each space can be interconnected with the other spaces or be self-contained.

If new cabling routes to and from the premises are required, it is possible to use the structured routing racks exclusively for weak currents.

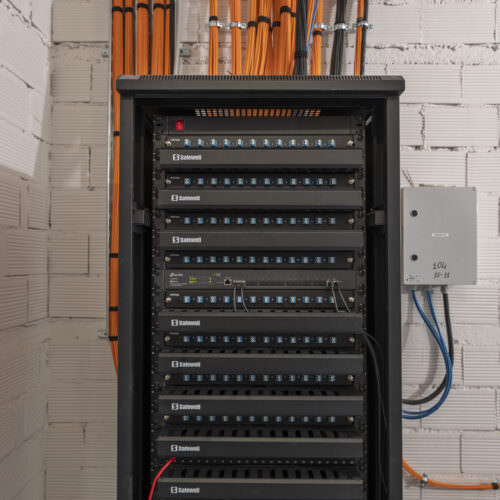

The central network infrastructure is based on enterprise-level networking equipment installed in a dedicated telecom room that can program any operation required at the interconnect and security levels.

B. INTERNET ACCESS

The building has an internet access hub that can deliver up to 1Gbps symmetrical circuits to the premises.

There is also an active ultra-high-speed wireless internet access system (WiFi 6) serving the public areas inside and outside the building for the convenience of visitors or even the possible servicing of external events that need internet access to crowds of people.

Safety Priorities

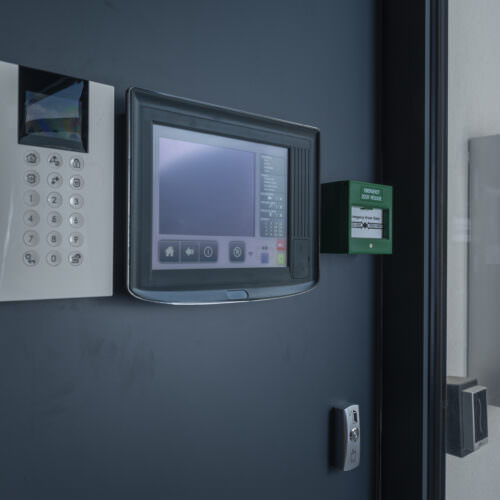

The building offers the highest standards of security and surveillance and a single highresolution CCTV system in all common indoor and outdoor areas. An essential level of security is operating a multi-level alarm system (Alarm) and Access Control for access to these areas. It is important to note that a high-precision smoke/fire detection system is throughout the building with a real-time instant notification system.

Entrance Security Control Point

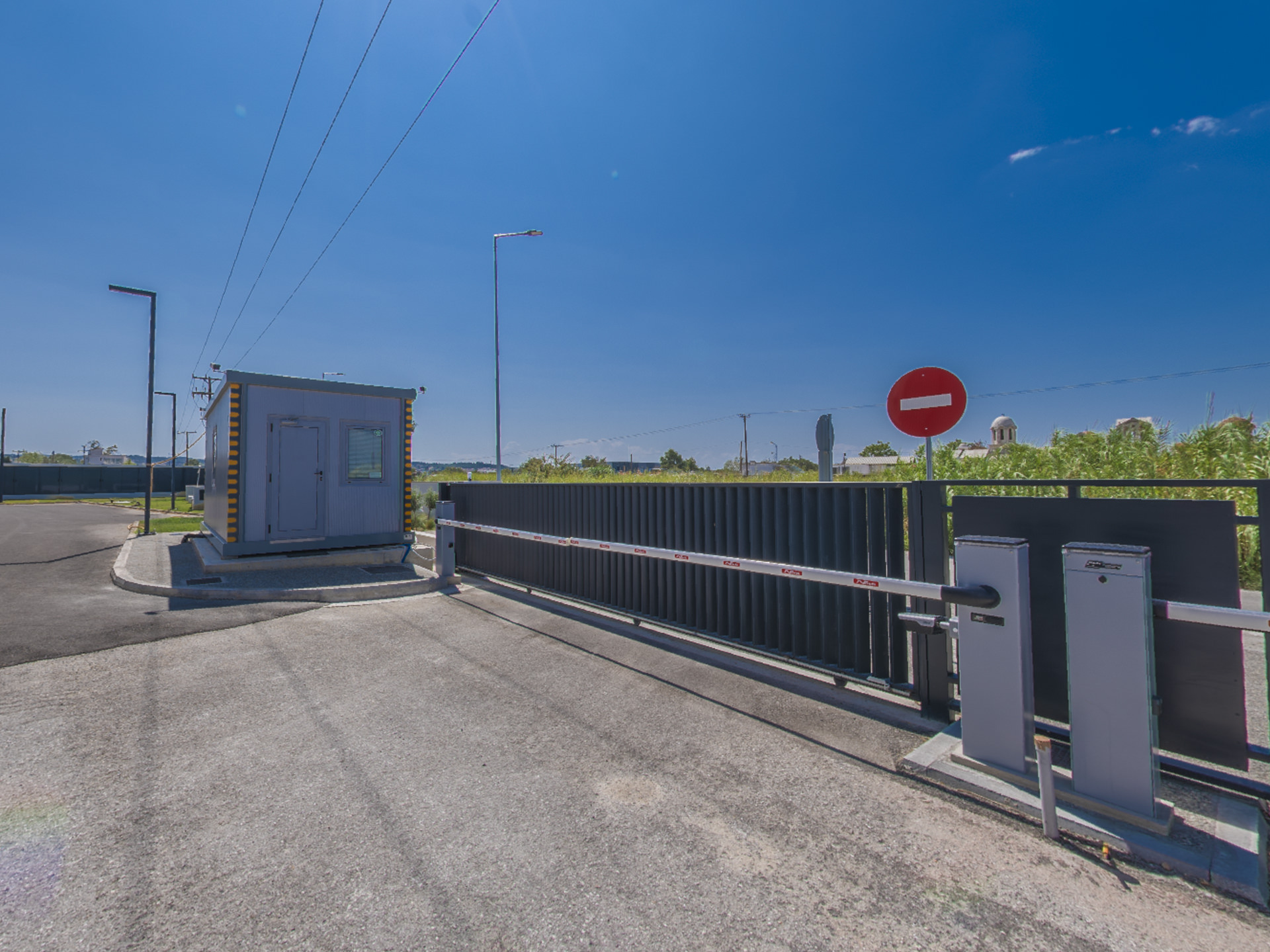

The Nonagon Building features a security control station at its entrance, responsible for managing the access of both guests and personnel. This station is staffed by a security guard who monitors all entry and exit points to ensure only authorized individuals gain access. The control station is equipped with essential amenities, including a WC, to provide comfort and convenience for security personnel during their shifts.

In addition to personnel control, the entrance is fitted with automated car barriers to regulate vehicle access. These barriers ensure that only authorized vehicles can enter the premises, providing an extra layer of security for the building and its occupants.

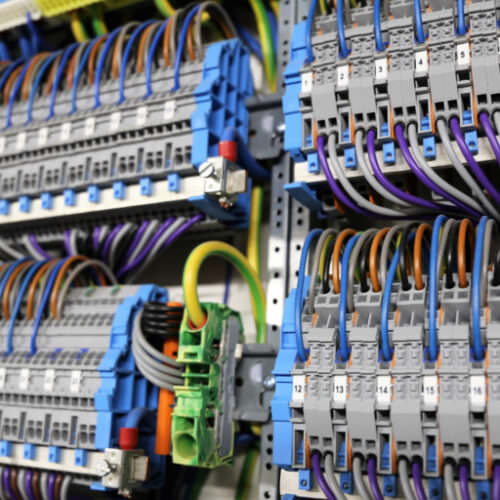

The demand for comfort and versatility in the management of heating, lighting and access control systems for an office complex is growing. At the same time, the efficient use of energy is becoming increasingly important. People want a comfortable, sustainable and safe place to live and work and that’s where automation jumps in.

However, more convenience and safety together with lower energy consumption can only be achieved by intelligent control and monitoring of all products involved. This is a true challenge as it implies more wiring, running from the sensors and actuators to the control and monitoring centres. For professionals, such a mass of wiring also means higher design and installation efforts, increased fire risk and soaring costs. That’s where KNX jumps in!
